Manual Chuck
MaxxUPC UPC Stainless Pallet Manual Chuck comes fully assembled and ready to use. This product is 100% cross-compatible with the Erowa OEM system.
MaxxDesign Exclusive Features:
- High quality materials.
- 100% cross-compatible with OEM system
Product Information:

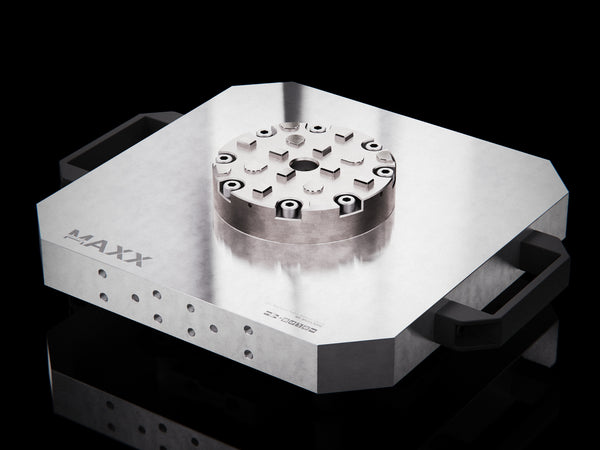

The MaxxUPC UPC Stainless Pallet Manual Chuck MaxxMagnum is fully cross-compatible with Erowa UPC systems. Each pallet comes with four segments and chucking spigots already aligned and ready to run. It includes removable handles, but does not include the Robot Gripper Link. This package also includes the MaxxMagnum Manual Chuck mounted to the UPC Pallet and ready for immediate use. The MaxxMagnum Low Profile Stainless Manual Chuck is rust-resistant and offers an excellent combination of durability, accuracy, and refined design. It delivers a locking force of 14,000 N. The recommended torque is 4 Nm when mounted on a MaxxMacro pallet and 10 Nm when mounted on a MaxxMagnum pallet. The removable MaxxMagnum sealing ring is not included. This setup requires the MaxxMacro Short Drawbar. The screw locking system uses a 5 mm Allen key.
Product Specifics
- Clamping Type: Manual (4 Nm for MaxxMacro pallet, 10 Nm for Magnum pallet)
- Clamping Force: 14000 N
-
Spigot required
:
[MM-DRWBR101]MaxxMacro 605.2RS Short Manual Drawbar Stainless
MaxxMacro 605.2RS Short Manual Drawbar Stainless
Regular price $38.00 USD -
Reference Element Included:
[ME-PAUCA001]MaxxUPC 016917 UPC Aluminum Blank Electrode Pallet Ground Customizable
MaxxUPC 016917 UPC Aluminum Blank Electrode Pallet Ground Customizable
Regular price $1,145.00 USD - Included Items: Removable Handles
-
Accessories:
[MM-MGACX001] ,MaxxMagnum Manual Chuck Integrated Sealing Ring Spare Part
MaxxMagnum Manual Chuck Integrated Sealing Ring Spare Part
Regular price $415.00 USD[ME-RGUCS038]MaxxUPC 036347 UPC Stainless GripperLink RCS 38mm Spare Part
MaxxUPC 036347 UPC Stainless GripperLink RCS 38mm Spare Part
Regular price $361.00 USD -
Compatible with:
[ME-CUPCR000]MaxxUPC 016841 UPC Stainless Pneumatic Chuck WEDM Rust Proof
MaxxUPC 016841 UPC Stainless Pneumatic Chuck WEDM Rust Proof
Regular price $7,937.00 USD - Automation: er robot gripper rcs
-
Repair Kit / Replacements:
[MM-MGRPX001] ,MaxxMagnum Manual Chuck Premium Locking Screw Replacement
MaxxMagnum Manual Chuck Premium Locking Screw Replacement
Regular price $154.00 USD[MM-RKMGX001] ,MaxxMagnum Manual Chuck Internal Repair Kit WEDM Rust Proof
MaxxMagnum Manual Chuck Internal Repair Kit WEDM Rust Proof
Regular price $394.00 USD[ME-CPUCS000]MaxxUPC 024562 UPC Stainless Centering Plate
MaxxUPC 024562 UPC Stainless Centering Plate
Regular price $518.00 USD
Product Details
| Product Name | MaxxUPC UPC Stainless Pallet Manual Chuck MaxxMagnum |
| SKU [Old SKU] | ME-MGUCS000 [MX-UPCMM68] |
| System | MaxxUPC |
| Cross-Compatible | ER-136055, ER-016917, ER-104310, ER-107472 |
| System Repeatability | 0.002mm |
| Material | Stainless 440C (57-60 HRC) |
| Weight | 16.329 kg | 36.0 lb |
